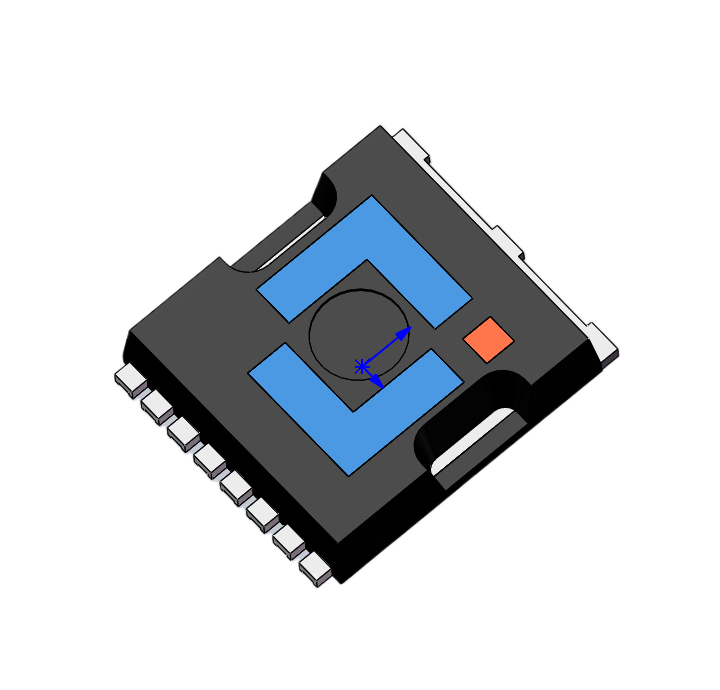

Nch 40V 420A, TOLL-8L, SGT Power MOSFET
| Part Number | Status | VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|
| CJTLR60SN04AL | Active | ±20 | 420 | 1.3～2.5 | 0.44 | 0.6 | 0.6 | 0.85 | TOLL-8L |
| Part Number | Package Type | Component Weight(g) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJTLR60SN04AL | TOLL-8L | - | TLR60SN04AL | Tape&Reel:2Kpcs/Reel | MSL3 |
